    Product Description

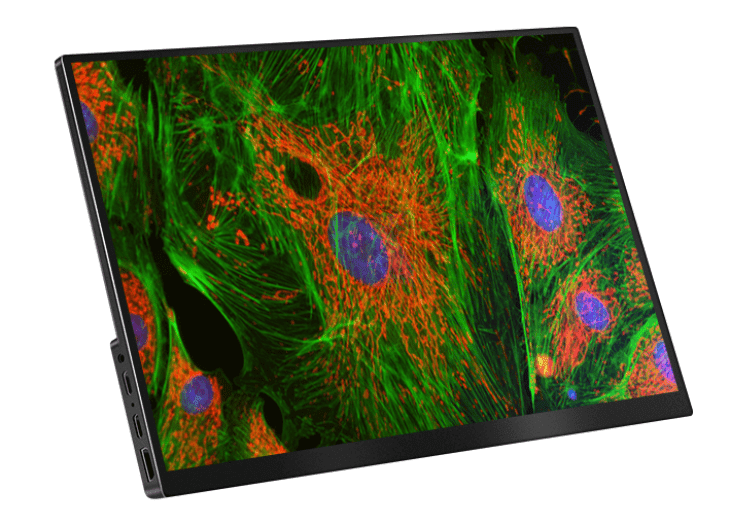

    A high specially designed, quality, true 4K, HDMI, 13.3 inch attachable display monitor. TPHD4K133B 'HDMI Displayer' for XCAM and XFCAM Series Cameras

    • True 4K HDMI display
    • 13.3 inch active area
    • IPS LCD panel, 178 degree wide viewing angle
    • HDR dynamic image enhancement
    • 100% SRGB primary gamut
    • 400cd/m2 display brightness, high contrast ratio up to 1000:1
    • 4mm narrow frame design on three sides, with 90% of the screen area, great visual experience
    • No delay is felt with 3ms response, and dynamic definition is optimised to keep the picture stable and clear without residual shadow
    • Standard HDMI interface
    • Connect computer to enable screen projection, splitting and expansion

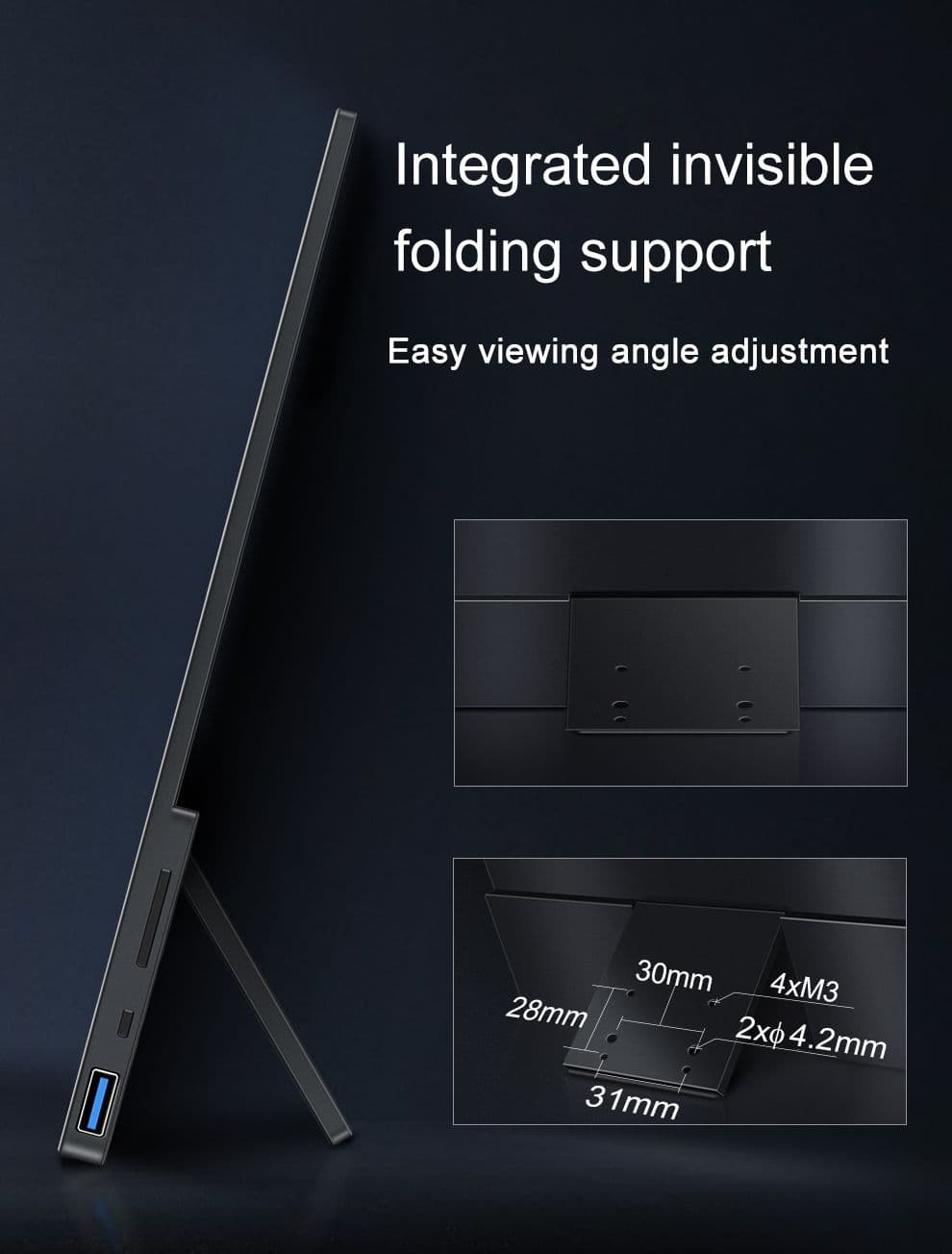

    • Integrated invisible folding support, easy viewing angle adjustment
    • Easy to connect with HDMI camera

    TPHD4K133B HDMI Displayer for XCAM Series Camera

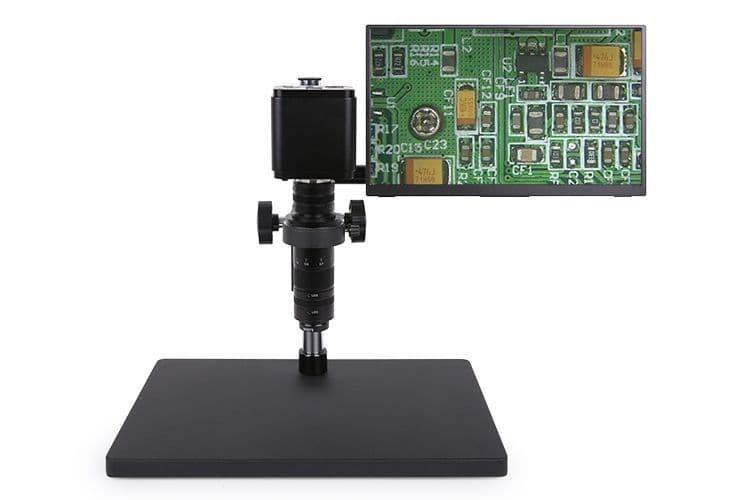

    Converts your microscope into a digital microscope with an integrated display

    TPHD4K133B iis designed for use with ToupTek's XCAM and XFCAM series HDMI cameras and to give a convenient and superb resolution, high definition display.  It uses the IPS LCD panel (Super TFT) to guarantee a wide view angle and high contrast. Together with XCAM/XFCAM HDMI cameras theTPHD4K133B display makes your imaging & display solution simple, flexible and intuitive.

    Outstanding performance of TPHD4K133B helps the XCAM/XFCAM HDMI cameras achieve fast frame rate and excellent colour imaging.

    LCD Panel IPS LCD Screen(Super TFT)
    Input Video Format HDMI
    Native Resolution 3840 x 2160
    Display Type 16:9 Ratio 13.3 Inch Active Matrix Super TFT LCD
    Typical Contrast Ratio 1000:1
    Colors 16.7 Million
    Viewing Angle(L/R/U/D) IPS Full View(178°)
    Active Display Area 295mm(W) × 165mm(H)
    Pixel Pitch 0.154(W) X 0.154(H) mm
    Refresh Rate 60Hz
    Brightness 400cd/m2
    Backlight LED Backlight，50000 hours
    Colour Black

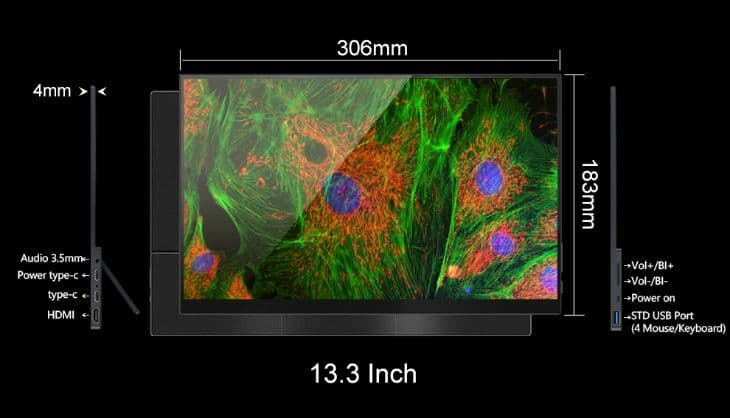

    Dimension 306(L)*183(H)*8(T) mm
    Weight 560g
    Operating Temperature -15 Degree~55 Degree
    Humidity Non Condensing Operating:10%-90%, Storage:5%-90%
    Synchronization Range 30-80 KHz Horizontal, 55-75 Hz Vertical
    Power Supply AC110V-220V /DC5~12V(1A )(Type C)
    Power Consumption Max 12W

    Specifications

    Type
    Display Monitor
    Input
    4K and 1080P HDMI
    Brand
    ToupTek
    Product Code
    HD1080A
    Weight
    2kg

    A high specially designed, quality, true 4K, HDMI, 13.3 inch attachable display monitor. TPHD4K133B 'HDMI Displayer' for XCAM and XFCAM Series Cameras

    • True 4K HDMI display
    • 13.3 inch active area
    • IPS LCD panel, 178 degree wide viewing angle
    • HDR dynamic image enhancement
    • 100% SRGB primary gamut
    • 400cd/m2 display brightness, high contrast ratio up to 1000:1
    • 4mm narrow frame design on three sides, with 90% of the screen area, great visual experience
    • No delay is felt with 3ms response, and dynamic definition is optimised to keep the picture stable and clear without residual shadow
    • Standard HDMI interface
    • Connect computer to enable screen projection, splitting and expansion
    • Integrated invisible folding support, easy viewing angle adjustment
    • Easy to connect with HDMI camera

    TPHD4K133B HDMI Displayer for XCAM Series Camera

    Converts your microscope into a digital microscope with an integrated display

    TPHD4K133B iis designed for use with ToupTek's XCAM and XFCAM series HDMI cameras and to give a convenient and superb resolution, high definition display.  It uses the IPS LCD panel (Super TFT) to guarantee a wide view angle and high contrast. Together with XCAM/XFCAM HDMI cameras theTPHD4K133B display makes your imaging & display solution simple, flexible and intuitive.

    Outstanding performance of TPHD4K133B helps the XCAM/XFCAM HDMI cameras achieve fast frame rate and excellent colour imaging.

    LCD Panel IPS LCD Screen(Super TFT)
    Input Video Format HDMI
    Native Resolution 3840 x 2160
    Display Type 16:9 Ratio 13.3 Inch Active Matrix Super TFT LCD
    Typical Contrast Ratio 1000:1
    Colors 16.7 Million
    Viewing Angle(L/R/U/D) IPS Full View(178°)
    Active Display Area 295mm(W) × 165mm(H)
    Pixel Pitch 0.154(W) X 0.154(H) mm
    Refresh Rate 60Hz
    Brightness 400cd/m2
    Backlight LED Backlight，50000 hours
    Colour Black
    Dimension 306(L)*183(H)*8(T) mm
    Weight 560g
    Operating Temperature -15 Degree~55 Degree
    Humidity Non Condensing Operating:10%-90%, Storage:5%-90%
    Synchronization Range 30-80 KHz Horizontal, 55-75 Hz Vertical
    Power Supply AC110V-220V /DC5~12V(1A )(Type C)
    Power Consumption Max 12W
    Type
    Display Monitor
    Input
    4K and 1080P HDMI
    Brand
    ToupTek
    Product Code
    HD1080A
    Weight
    2kg

    TPHD4K133B

    Product Code HD1080A

    A high specially designed, quality, true 4K, HDMI, 13.3 inch attachable display monitor. TPHD4K133B 'HDMI Displayer' for XCAM and XFCAM Series Cameras
