    Home / M42/M54 Mount Cameras
    product review overlay image

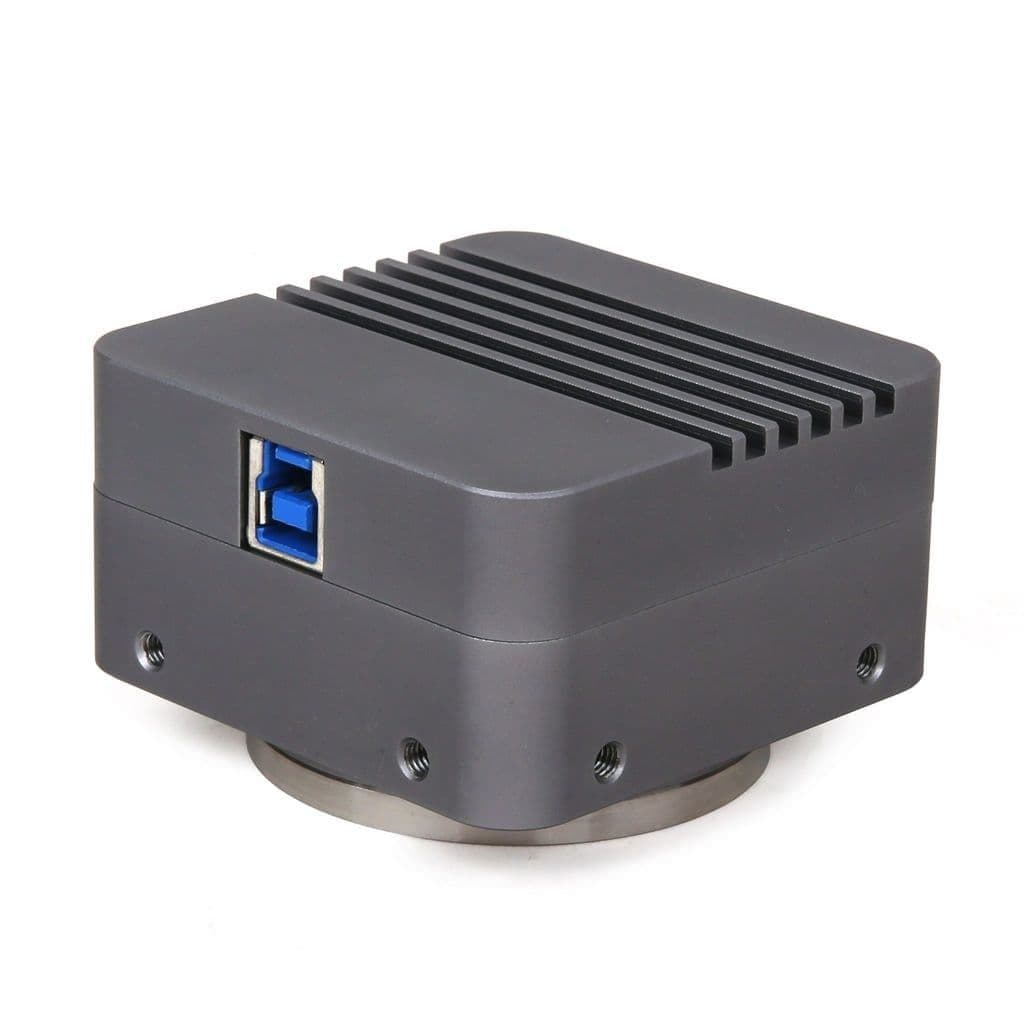

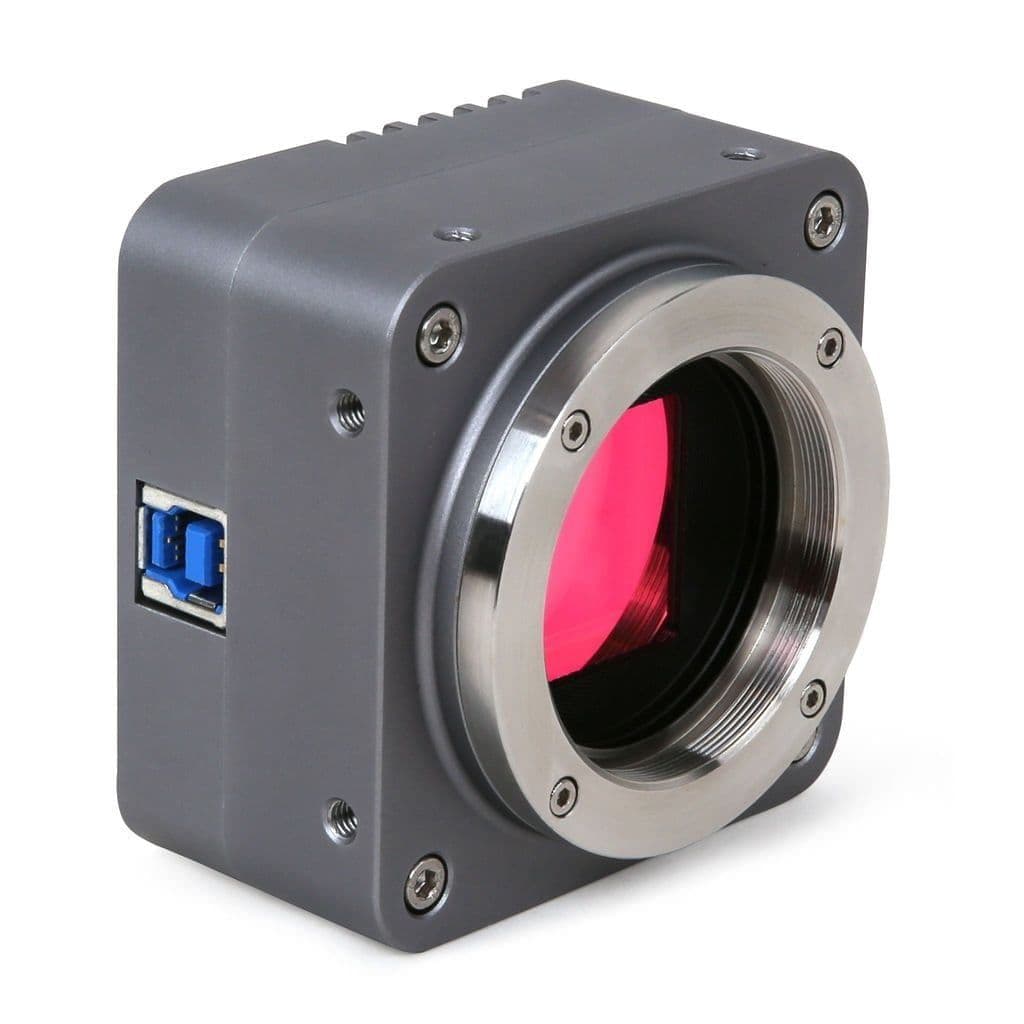

    BigEye4200KMA
    BigEye4200KMA
    BigEye4200KMA

    Product Description

    4.2MP Monochrome USB-3 M42 Mount Camera with high speed data transmission large top quality SONY or GSENSE back-illuminated CMOS sensor giving super-high sensitivity with real-time bit depth switch to 12bit. Ultra-low noise. Supplied with the comprehensive ToupView software and SDK. integrated with 12-16 bit Ultra-fine Hardware Image Signal Processor Video Pipeline(Ultra-fineTM HISPVP) for Demosaic, Adjustments, Automatic Exposure, Gain Adjustment, One Push White Balance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, Contrast Adjustment, Bayer and finally form RAW data for 8/12 bit output. This will move the heavier burden of the processing from the PC to the Ultra-fineTM HISPVP and greatly accelerating the processing speed. Sensitivity 8.1x10^7 (e-/((W/m2).s)) Peak QE 64.2% @550nm 13(e-/s/pix)

    Specifications

    Type
    M42 Mount Camera
    Resolution (MP)
    4.2
    Monochrome
    Yes
    Sensor Pixel Size (microns)
    6.5x6.5
    Sensor Type
    4.2M/GSENSE2020e(M,RS)1.2(13.31x13.31)
    Dimensions
    68x68x43.4mm
    Camera Mount
    M42 T2 Mount
    Brand
    ToupTek
    Product Code
    BigEye4200KMA
    Weight
    1kg
    4.2MP Monochrome USB-3 M42 Mount Camera with high speed data transmission large top quality SONY or GSENSE back-illuminated CMOS sensor giving super-high sensitivity with real-time bit depth switch to 12bit. Ultra-low noise. Supplied with the comprehensive ToupView software and SDK. integrated with 12-16 bit Ultra-fine Hardware Image Signal Processor Video Pipeline(Ultra-fineTM HISPVP) for Demosaic, Adjustments, Automatic Exposure, Gain Adjustment, One Push White Balance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, Contrast Adjustment, Bayer and finally form RAW data for 8/12 bit output. This will move the heavier burden of the processing from the PC to the Ultra-fineTM HISPVP and greatly accelerating the processing speed. Sensitivity 8.1x10^7 (e-/((W/m2).s)) Peak QE 64.2% @550nm 13(e-/s/pix)
    Type
    M42 Mount Camera
    Resolution (MP)
    4.2
    Monochrome
    Yes
    Sensor Pixel Size (microns)
    6.5x6.5
    Sensor Type
    4.2M/GSENSE2020e(M,RS)1.2(13.31x13.31)
    Dimensions
    68x68x43.4mm
    Camera Mount
    M42 T2 Mount
    Brand
    ToupTek
    Product Code
    BigEye4200KMA
    Weight
    1kg

    BigEye4200KMA

    Product Code BigEye4200KMA

    4.2MP USB-3 M42 Mount Camera with high speed data transmission large top quality SONY or GSENSE back-illuminated CMOS sensor giving super-high sensitivity with real-time bit depth switch to 12bit.
