    Product Description

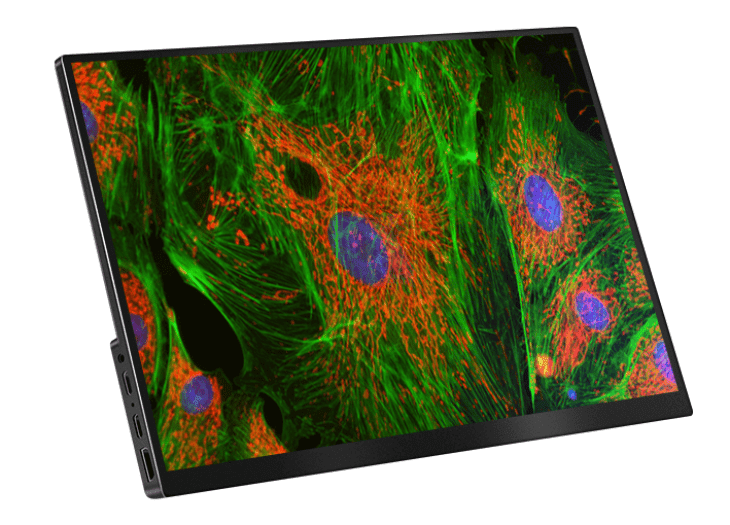

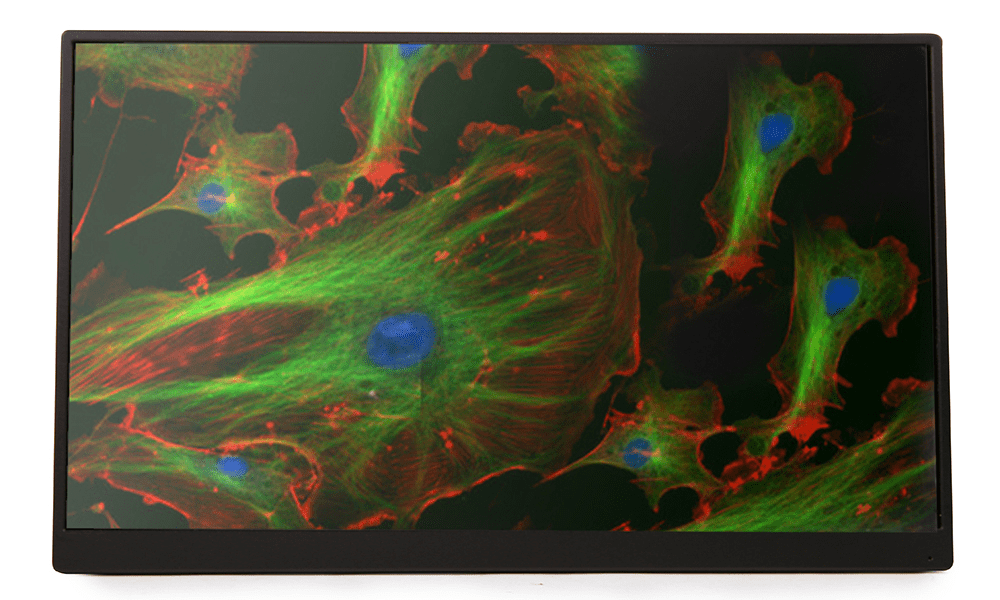

    Touchscreen Display for use with touch screen enabled HDMI output cameras.   A high specially designed, quality, true 1080P, HDMI, 13.3 inch attachable display monitor. TPHD1080PD 'HDMI Displayer' for 1080P output ToupTek cameras.

    • True 1080P HDMI display
    • 13.3 inch active area
    • IPS LCD panel, 178 degree wide viewing angle
    • HDR dynamic image enhancement
    • 100% SRGB primary gamut
    • 400cd/m2 display brightness, high contrast ratio up to 1000:1
    • 4mm narrow frame design on three sides, with 90% of the screen area, great visual experience
    • No delay is felt with 3ms response, and dynamic definition is optimised to keep the picture stable and clear without residual shadow
    • Standard HDMI interface
    • Connect computer to enable screen projection, splitting and expansion

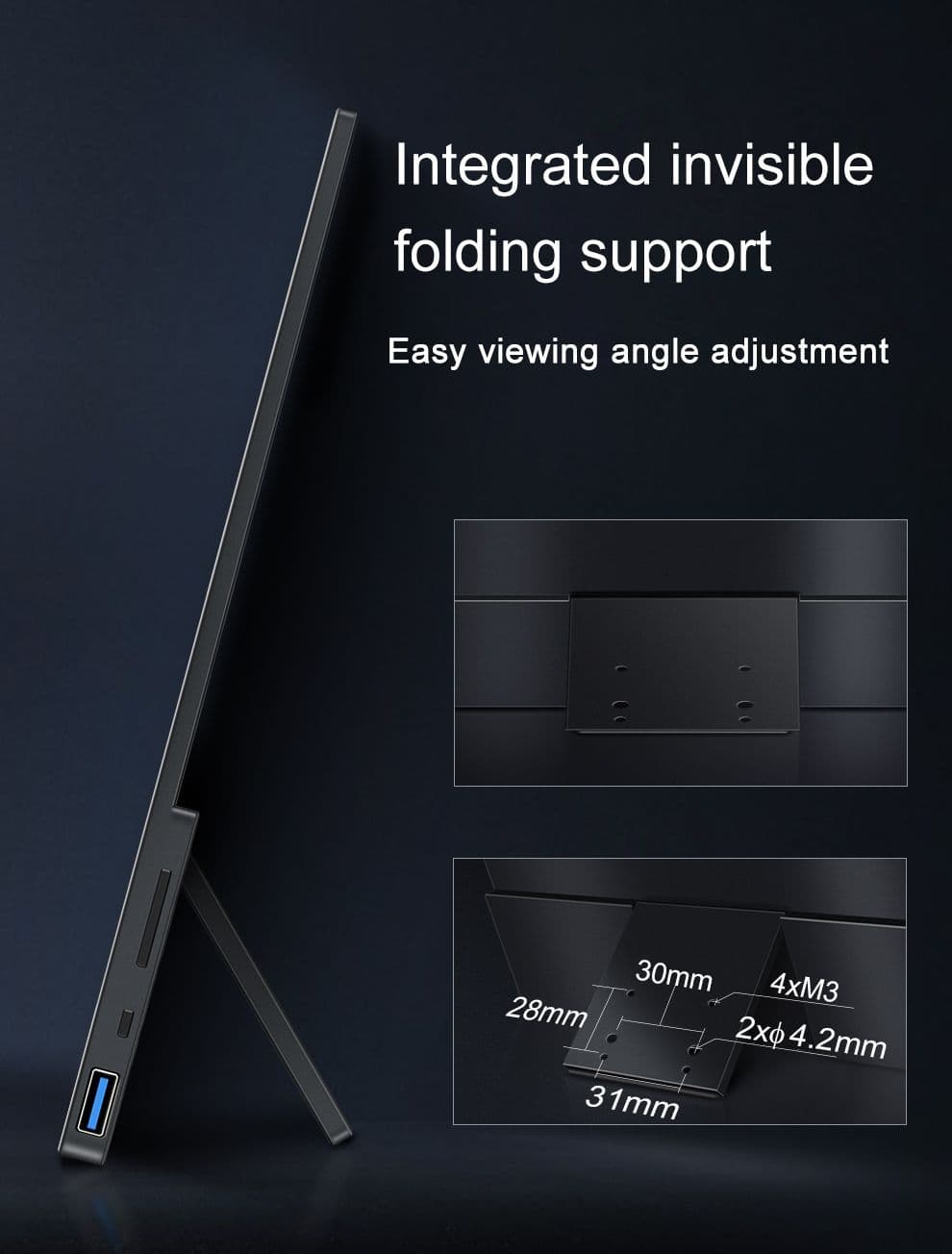

    • Integrated invisible folding support, easy viewing angle adjustment
    • Easy to connect with HDMI camera

    TPHD1080PD HDMI Displayer for HDMI Output Cameras

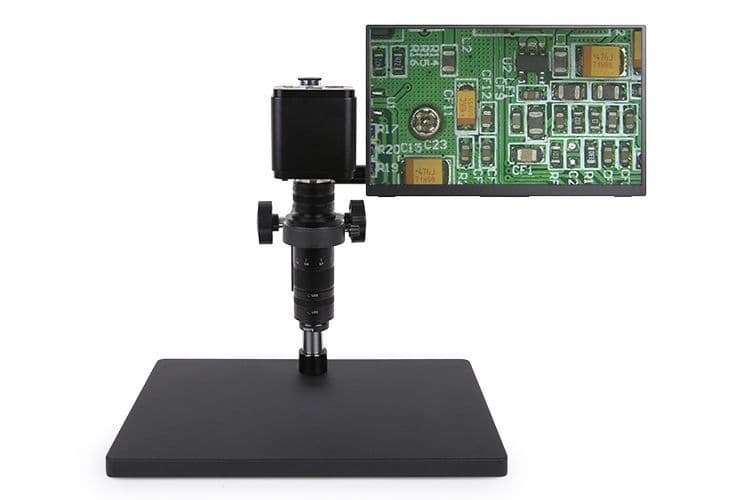

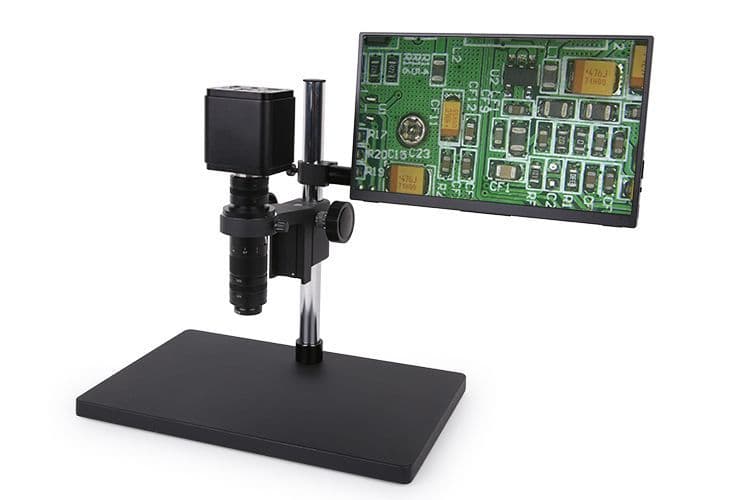

    Converts your microscope into a digital microscope with an integrated display

    TPHD1080PD is designed for use with ToupTek's HDMI cameras and to give a convenient and superb resolution, high definition display.  It uses the IPS LCD panel (Super TFT) to guarantee a wide view angle and high contrast. Together with the HDMI cameras the TPHD1080PD display makes your imaging & display solution simple, flexible and intuitive.

    Outstanding performance of TPHD1080PD helps the HDMI cameras achieve fast frame rate and excellent colour imaging.

    LCD Panel IPS LCD Screen(Super TFT)
    Input Video Format HDMI
    Native Resolution 1920 x 1080
    Display Type 16:9 Ratio 13.3 Inch Active Matrix Super TFT LCD
    Typical Contrast Ratio 1000:1
    Colors 16.7 Million
    Viewing Angle(L/R/U/D) IPS Full View(178°)
    Active Display Area 295mm(W) × 165mm(H)
    Pixel Pitch 0.154(W) X 0.154(H) mm
    Refresh Rate 60Hz
    Brightness 400cd/m2
    Backlight LED Backlight，50000 hours
    Colour Black
    Dimension 306(L)*183(H)*8(T) mm
    Weight 560g
    Operating Temperature -15 Degree~55 Degree
    Humidity Non Condensing Operating:10%-90%, Storage:5%-90%
    Synchronization Range 30-80 KHz Horizontal, 55-75 Hz Vertical
    Power Supply AC110V-220V /DC5~12V(1A )(Type C)
    Power Consumption Max 12W

    Specifications

    Type
    Display Monitor
    Input
    4K and 1080P HDMI
    Brand
    ToupTek
    Product Code
    HD1080A
    Weight
    2kg
